泄压阀
| 产品号 | 89039 |
请登录后查看价格
泄压阀

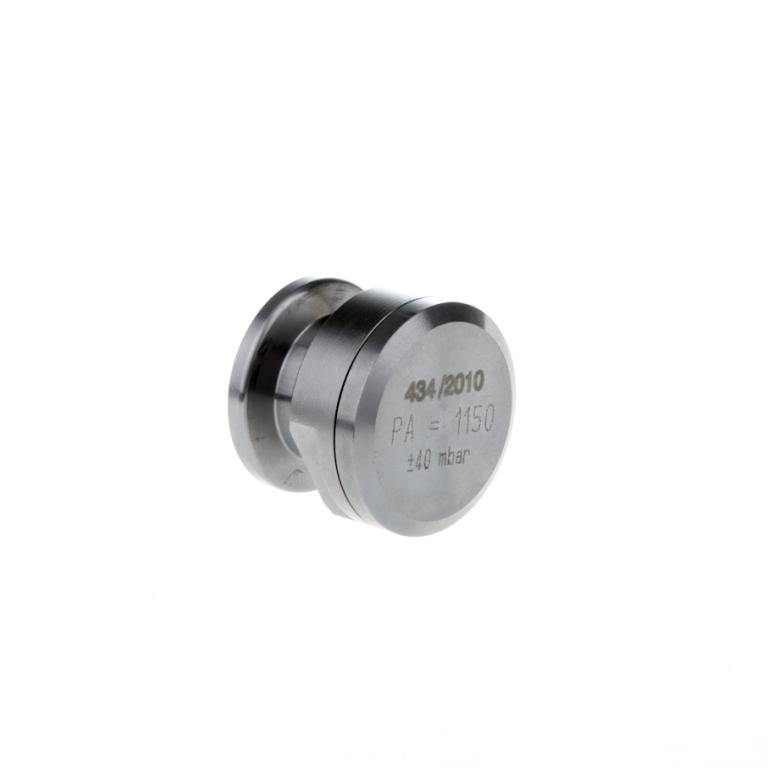

The DN 16 ISO-KF valves are pressure relief valves for use in pumps and small to mid-range vacuum systems. They serve the purpose to prevent the build-up of overpressures >1150 mbar. Technical details on the relevant opening pressures and serial numbers are printed onto the valve.
The valve opens at pressures above 1150 ±40 mbar. If the pressure inside the vacuum system is below 1150 mbar, the valve remains closed.
| Technical data | ||||
|---|---|---|---|---|
| Pressure Relief Valve DN 16 ISO-KF | ||||

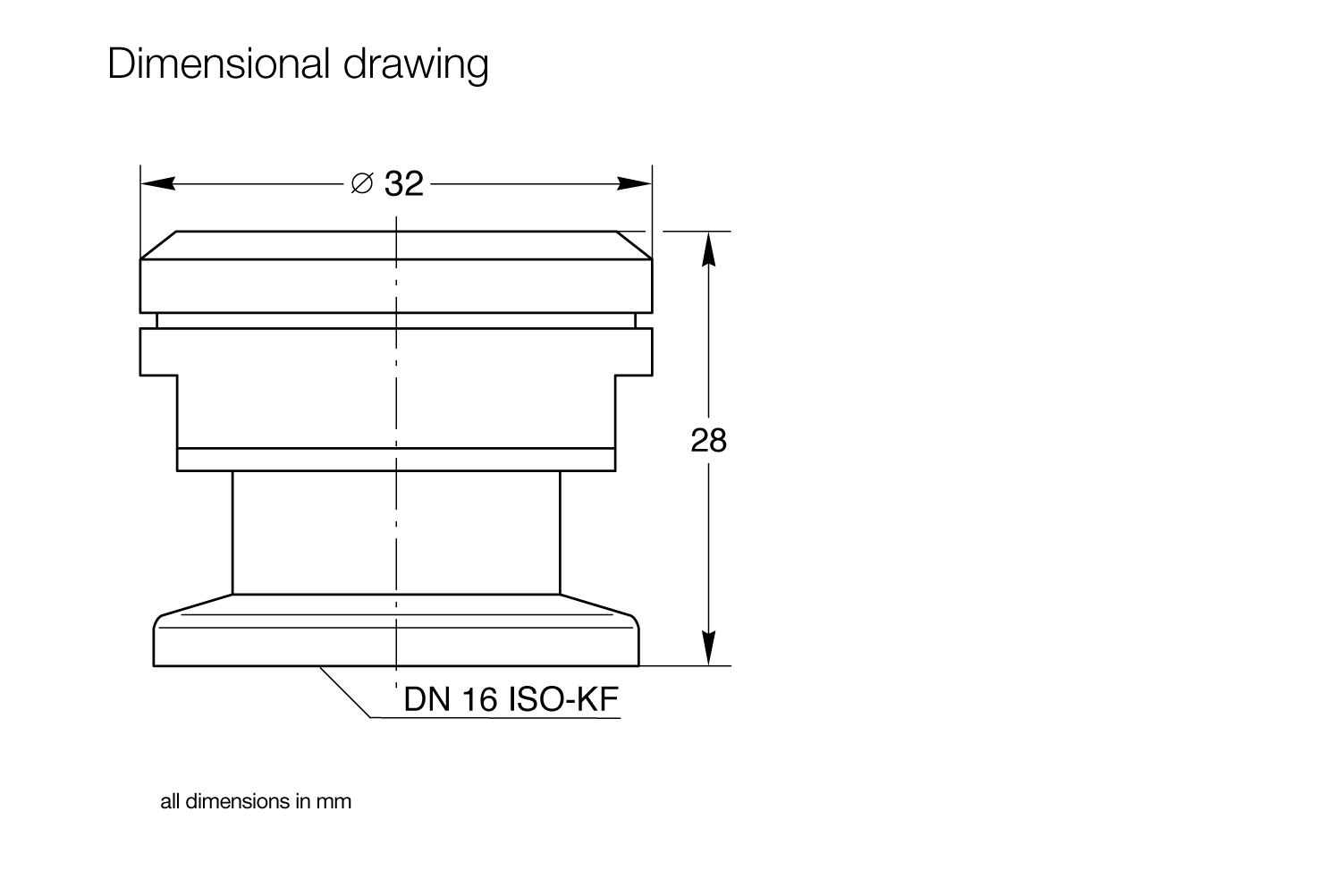

| Connecting flange | DN | 16 ISO-KF | ||
| Installation orientation | as needed, any mounting position | |||
| Actuation | tension spring (closing) | |||
| Leak tightness | mbar l/s | <1 x 10-7 | ||
| Max. perm. operating pressure | mbar | <1,500 | ||
| Max. perm. pressure (absolute) | mbar | 2,000 | ||
| Environmental temperature | °C | 0 … 50 | ||
| Storing temperature | °C | -15 … 60 | ||
| Bakeout temperature | °C | <80 | ||
| Weight | g | 100 | ||
| Housing | stainless steel | |||
| Tension spring | stainless steel | |||
| Retaining ring | stainless steel | |||
| Seal | NBR | |||
| Protection cap | PE | |||
| Packaging | cardboard, plastic foil | |||
